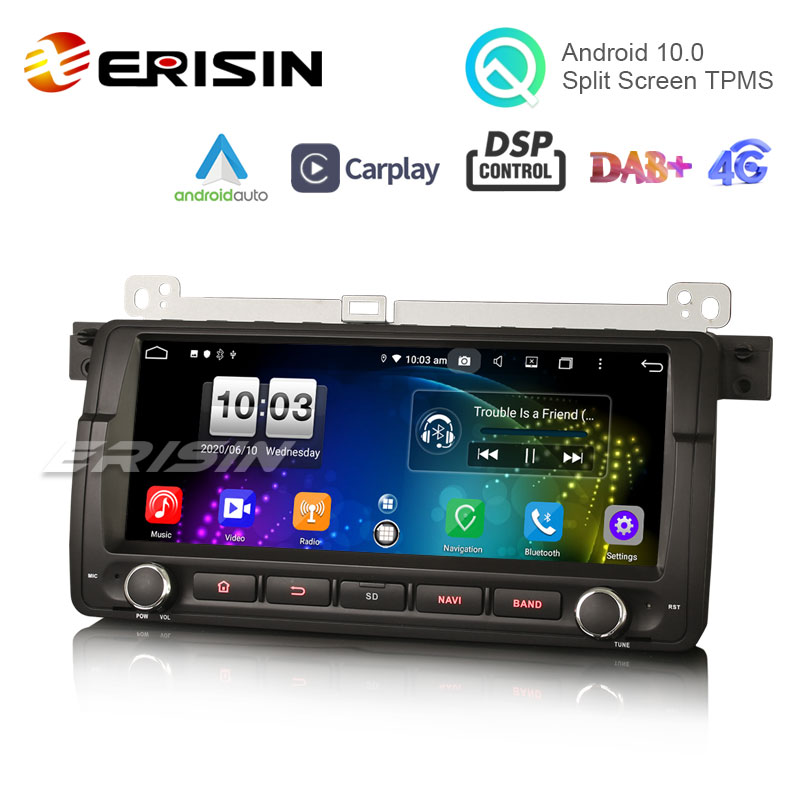

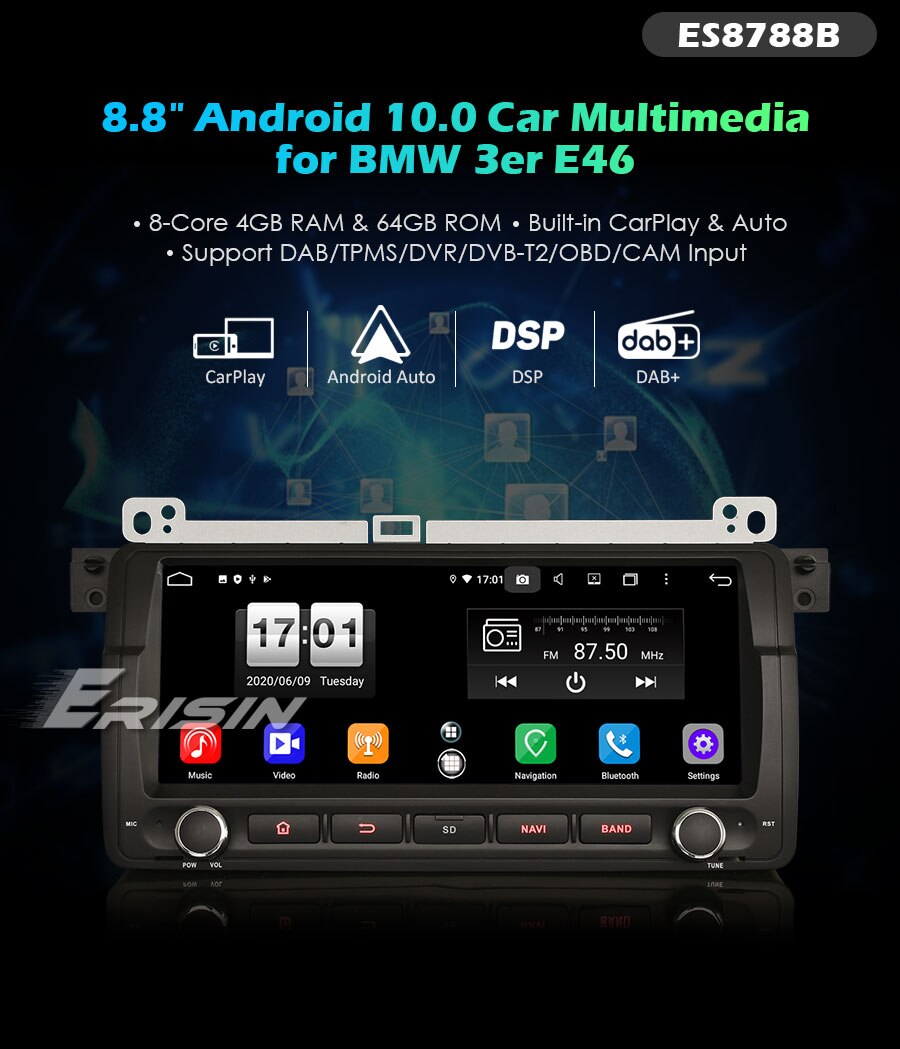

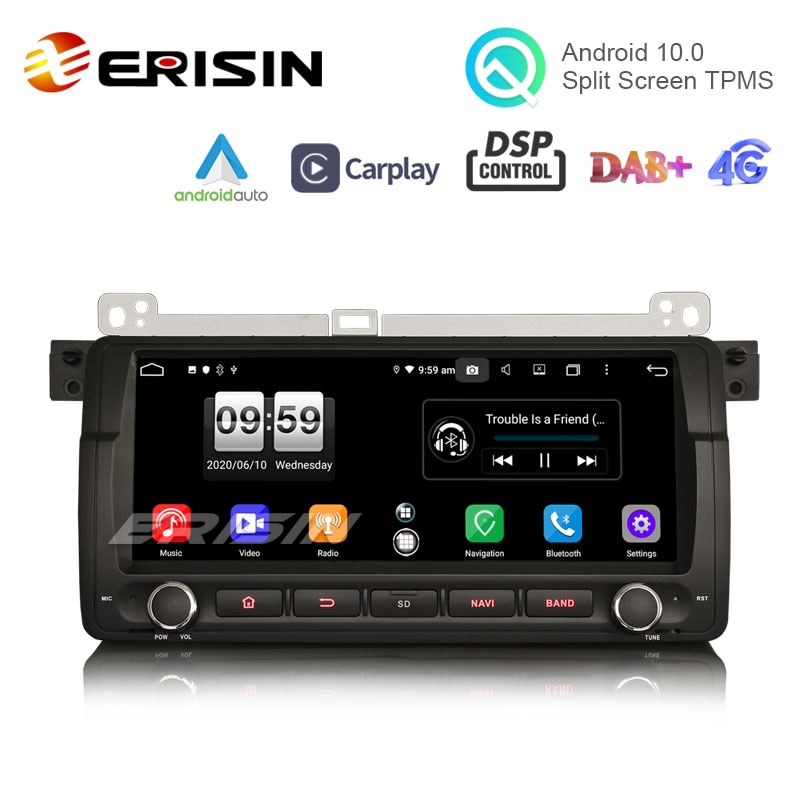

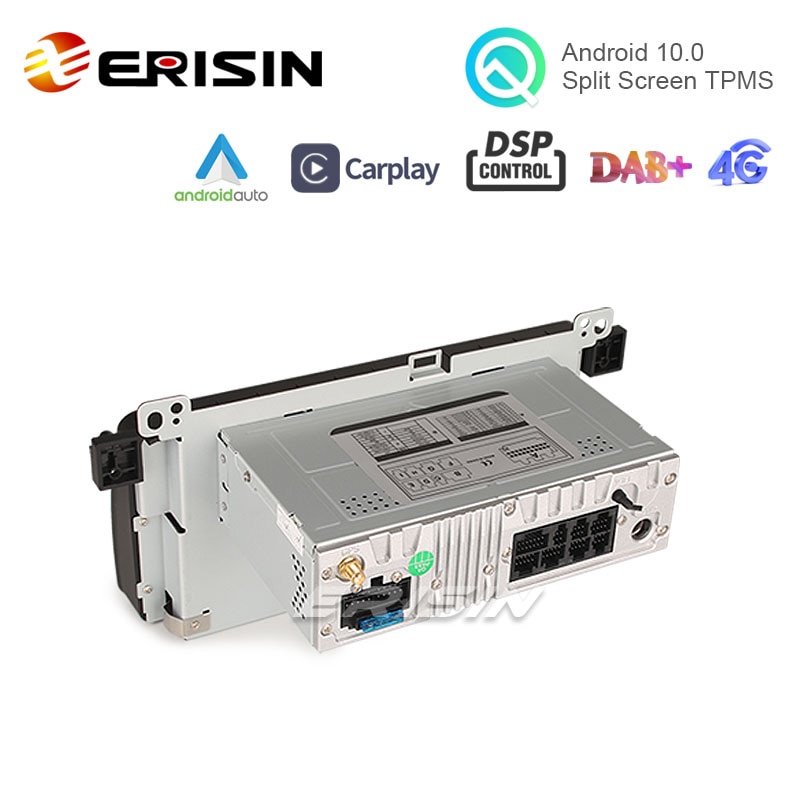

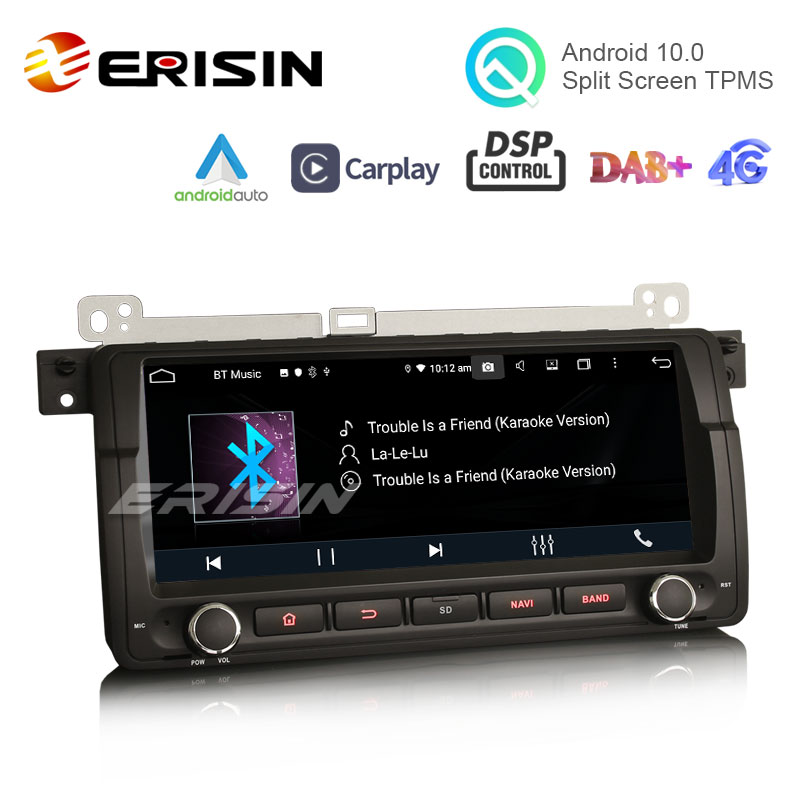

Erisin 8788 8.8″ PX5 64G Android 10.0 Car Radio Apple CarPlay Auto GPS 4G DAB+ DSP for BMW 3er E46 318 325 M3 MG ZT Rover75

Key Features:

– Android 10.0 OS, Octa Core, 4GB RAM and 64GB ROM, 1 Card/2 USB up to 3*128GB extended Storage.
– Adopt the newest ultra HD Screen with Resolution:1280* 480 Pixels— our unique design
– Can-bus Decoder Box incl.

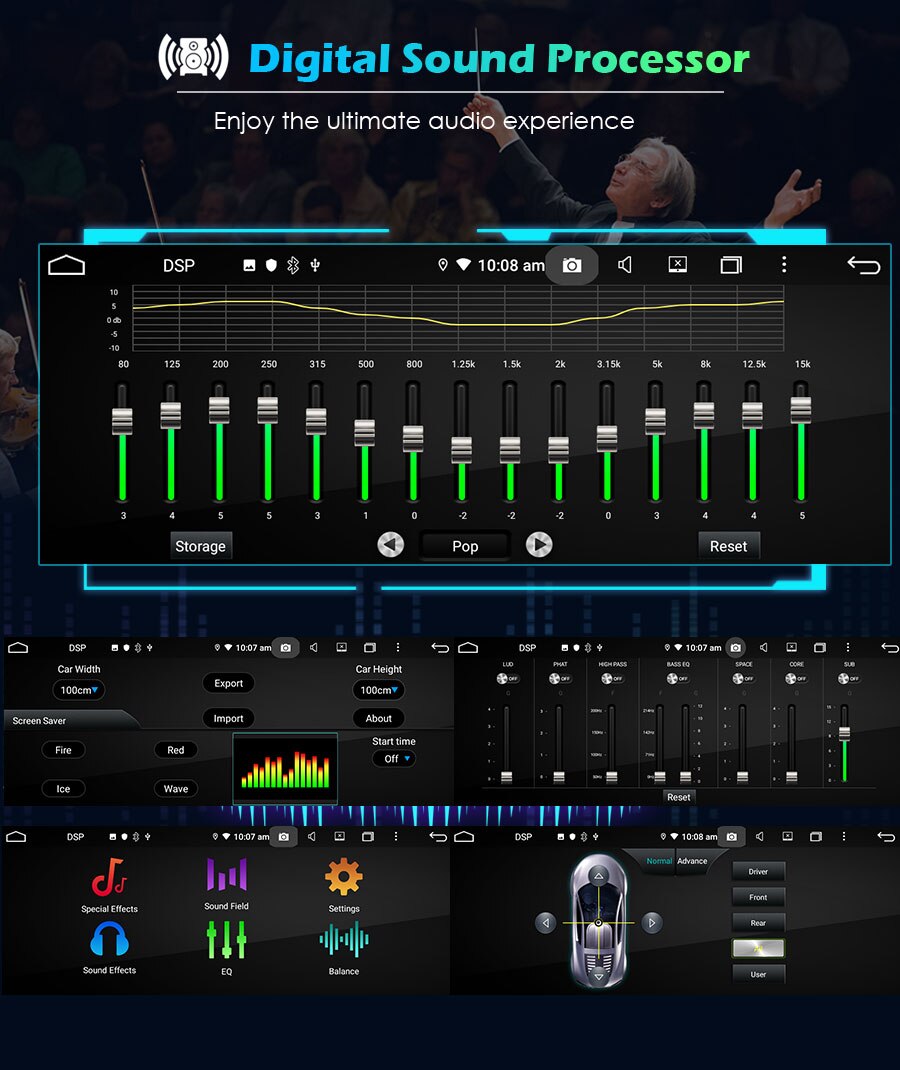

– Built-in DSP Amplifier System, which bring the perfect sound effect in your car.

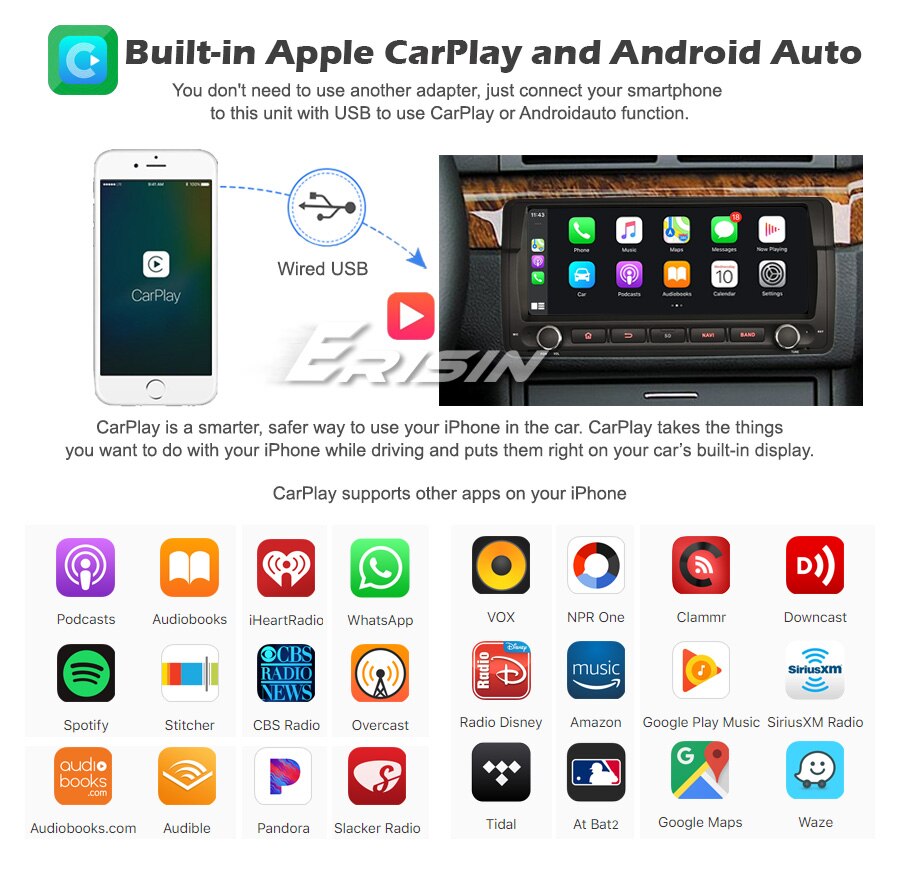

– Built-in Apple CarPlay and Android Auto module. you don’t need to use another adapter, just connect your
smartphone to this unit with USB to use CarPlay or Android Auto function.
– Built-in Bluetooth module, which supports hands-free function with A2DP Audio Streaming.
– Built-in GPS Module, which supports offline GPS Navigation, GPS function ready to use.
– Built-in WiFi Module for Internet, you can Link mobile hotspot to use Google online Navigation.

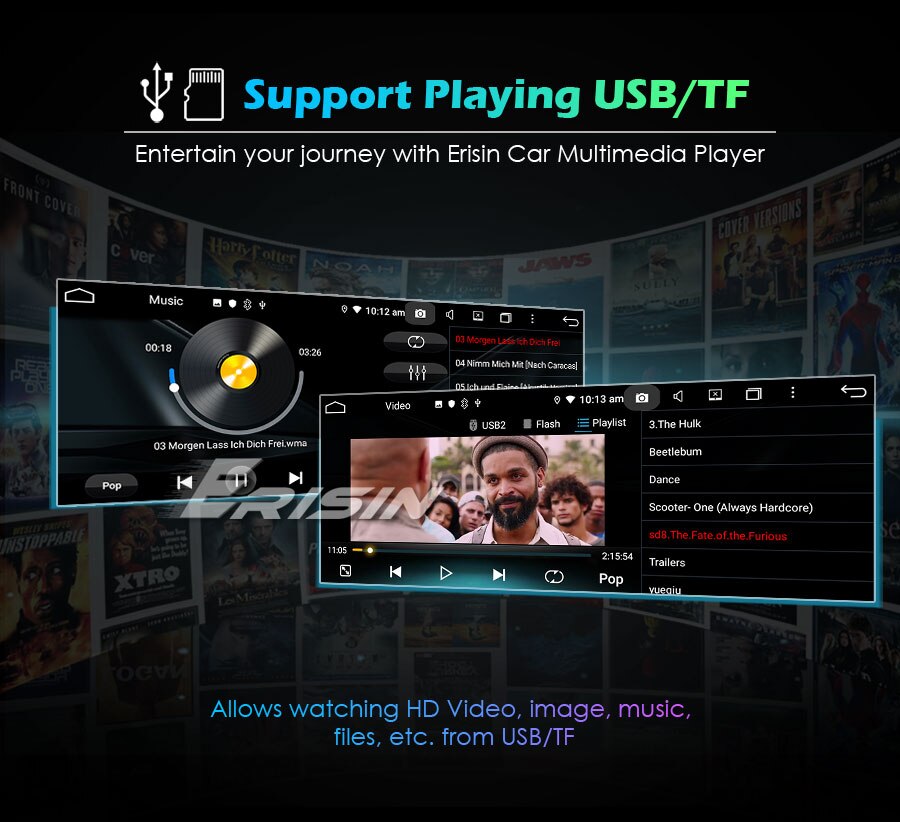

– Built-in Android Multimedia Player, can play Music/Video/Photo from local Disc or USB/TF.
– Built-in USB, TF, Radio, RDS, WiFi, Clock, Calculator, Calendar, Adobe Reader.

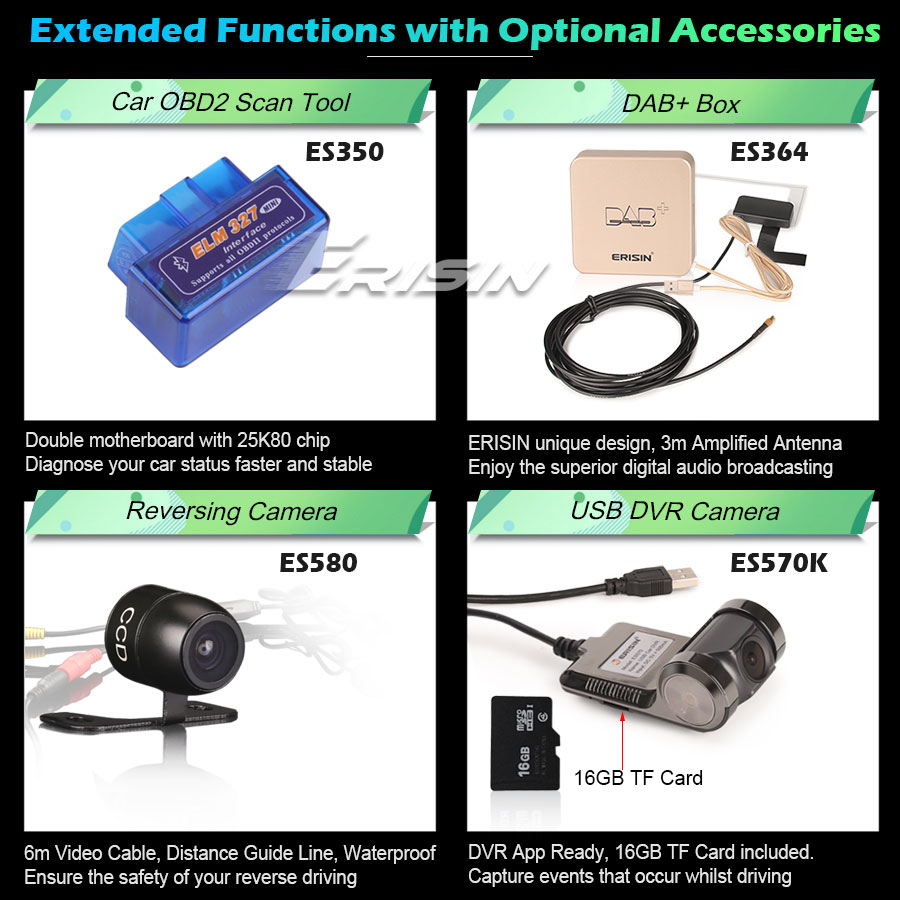

– Support DAB+, DVB-T/T2, TPMS, OBD2, DVR, Camera, AVIN, 3G, 4G etc. extended functions.
– Support steering wheel control, easier and safer to adjust volume, answer calls and switch the songs while driving.

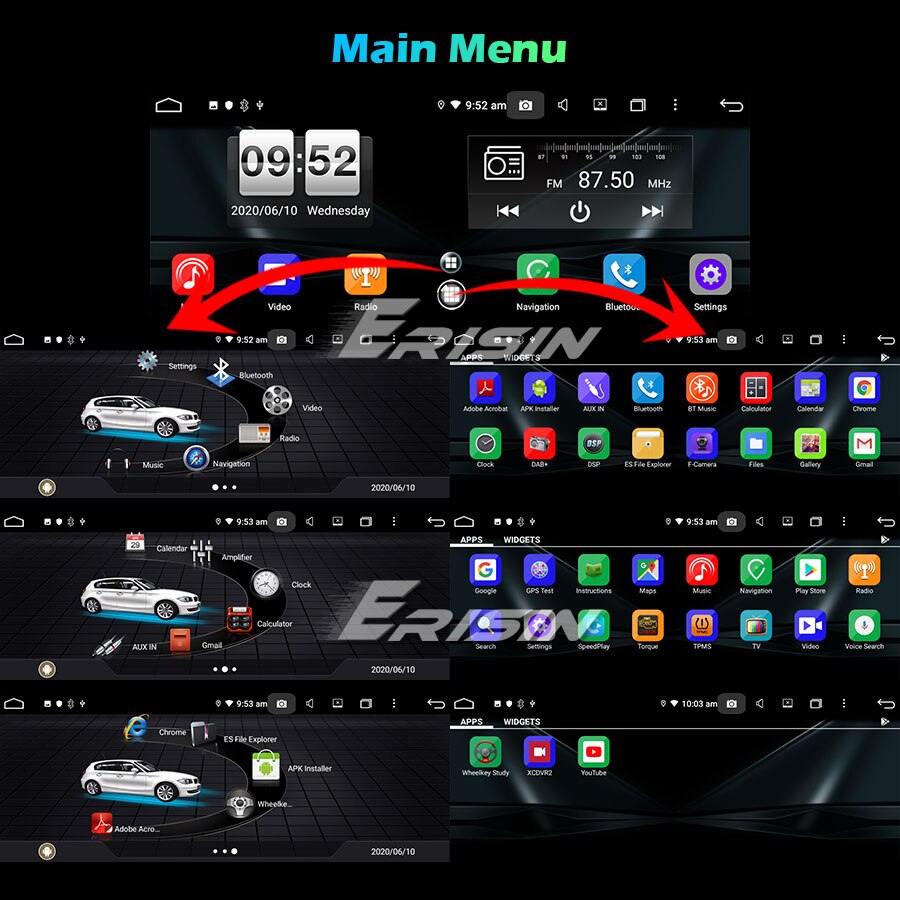

– Unique design with two UI styles switchable, very beautiful and fashionable Design.

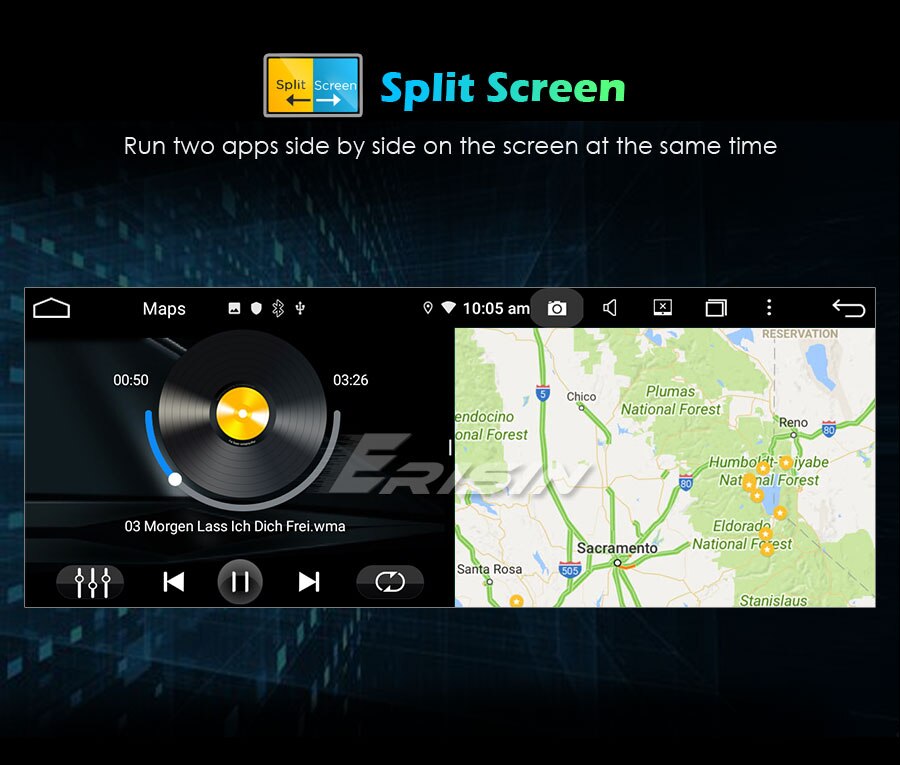

– Support Split Screen, you can run two apps side by side.

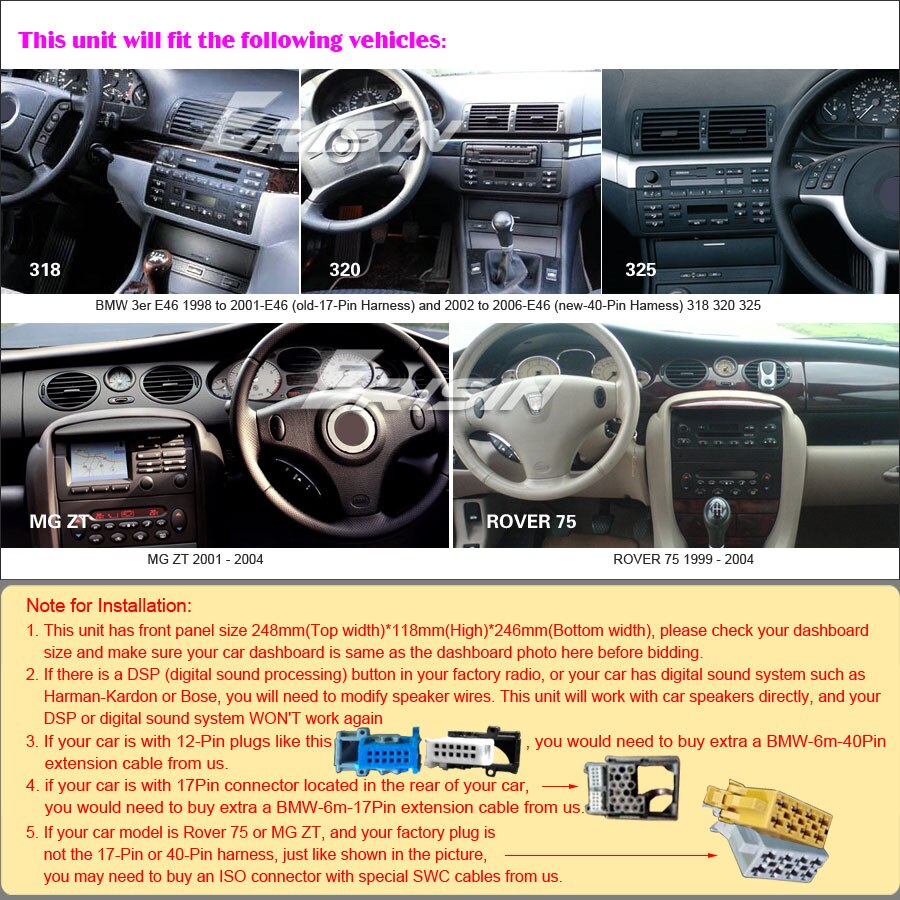

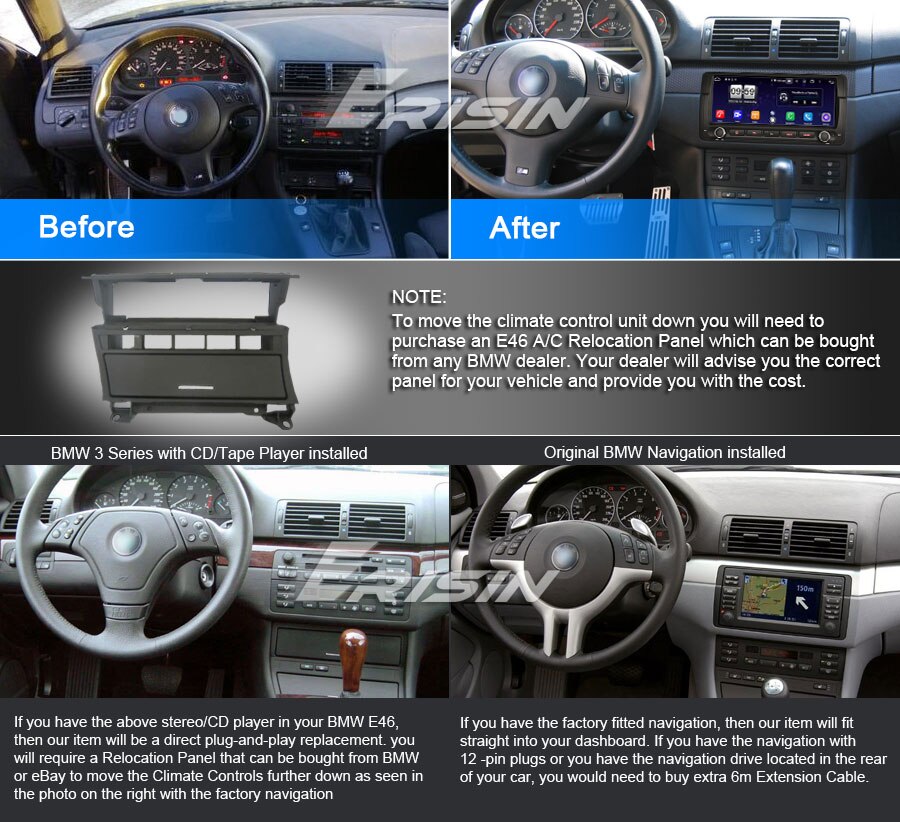

Compatible Models & Years:

For BMW 3 Series E46 1998-2001 with Old 17-Pin connector
For BMW 3 Series E46 2002-2006 with new 40-Pin connector
For BMW M3 1998-2006 and BMW E46 3er 318 320 325
Rover 75 1999~2004 and MG ZT 2001~2004

Important Note:

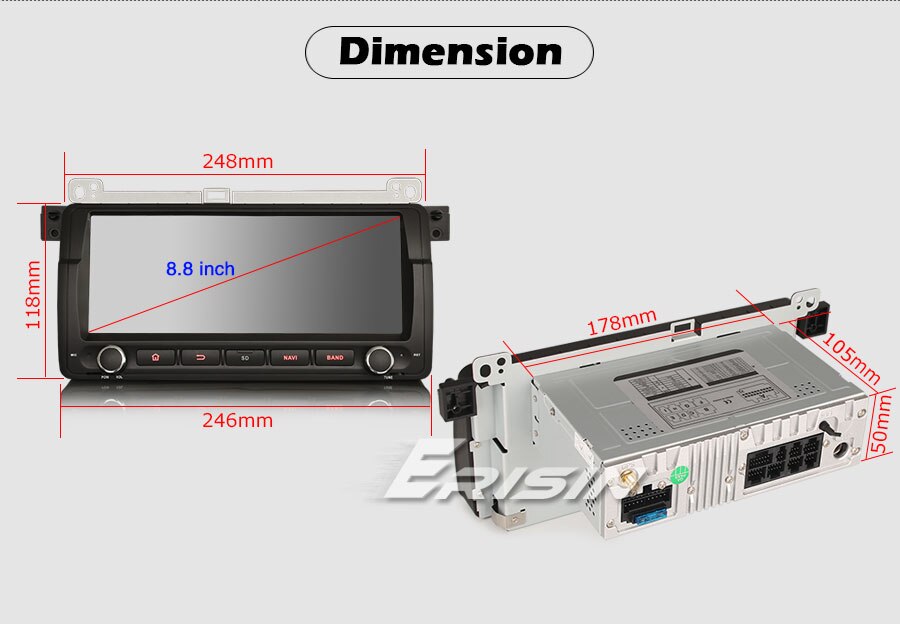

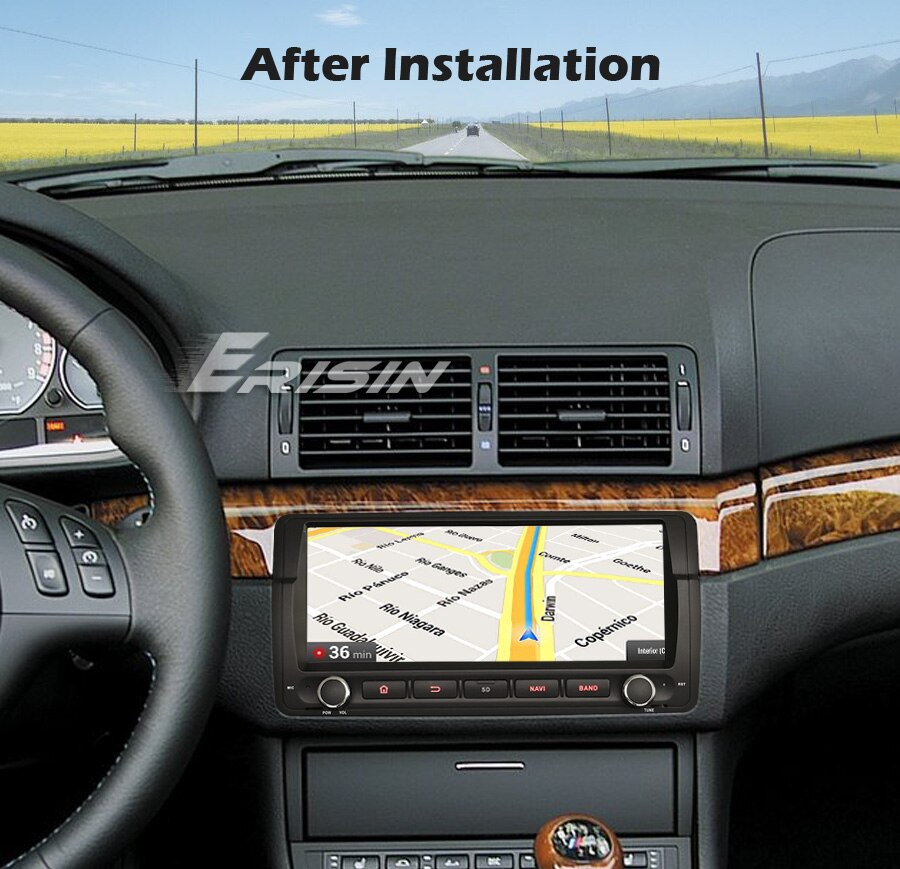

This unit has front panel size 248mm(Top width)*118mm(High)*246mm(Bottom width). To make sure the item fits your car, please check the shape and dimensions of your original car Media Player which is the same as the description in our listing before bidding.

General
– Power Supply: DC 12V (allowance range: 10.8-14.5V)
– Max. Current: 10A
– Screen Size: 8.8 inch
– Front panel Size: 248mm(Top width)*118mm(High)*246mm(Bottom width)
– Package Size: 340mm*260mm*190mm
– Shipping Weight: 4.5kg

System
– Operation System: Google Android 10.0
– CPU: Rockchips PX5 1512MHz Cortex A53
– RAM: 4GB
– Internal Memory: 64GB
– Extended Card/USB: Support USB/SD up to 128GB

Display
– Screen Type: Multi-touch screen
– Multi-windows view: Yes, support Split Screen, you can run two apps side by side
– Resolution: 1280*480
– Capacitive or Resistance Screen: Capacitive
– Built-in Clock and Calendar: Yes, show real time and can use network-provided time
– Main Menu Status Bar display: Can be changed to Music/Radio/BT-Stereo Player and Clock/Date/Week
– Change Wallpapers: built-in 5 live wallpapers, 38 standard wallpapers, support User’s wallpaper
– Change Apps-Icon Position: Yes

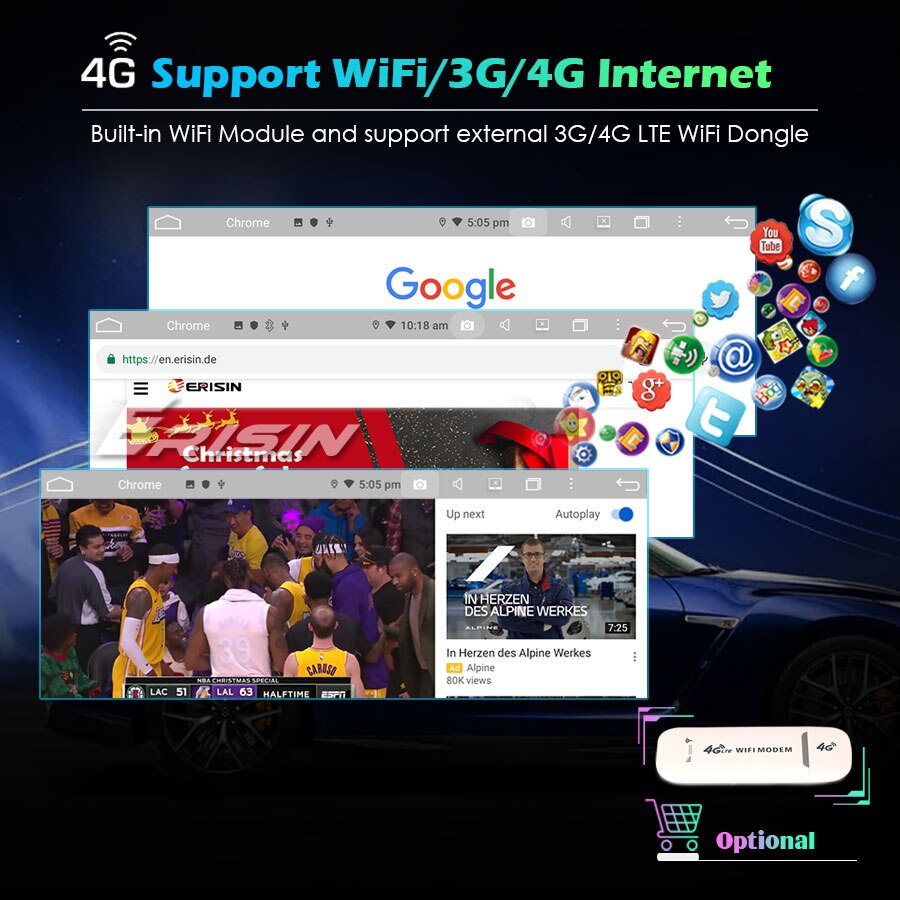

Internet
– WiFi Internet: Built-in WiFi Module, support 802.11b/g/n, support WiFi Hotspot
– 3G/4G Internet: USB 3G/4G Dongle not included, just contact us to buy it together
– Explorer: Opera, UCWeb, SkyFile, Dolphin and more explorer for your selection
– Online Entertainment: Online Video, TV, Movie, Music, Radio, Video Chat
– Online Navigation: Online Google Maps Navigating
– Online Games: Yes, online play or you can download it from google play store
– Online Communication: keep connected through WhatsApp, WeChat, Twitter, Facebook, Gtalk, Gmail…
– Read and edit Office Software: Yes, support Word, Excel, Powerpoint, PDF, TXT

Audio
– Format: MP3, WMA, MP2, OGG, AAC, MA4, FLAC, APE, WAV etc. Could play via song list
– Record: MP3, WMA
– Other: LRC synchronized display; ID3 search; Search by files; Album Picture; User-defined audio effect
– Audio IC: TDA7851, Top Global Cirrus IC, independent audio decoding
– SNR: Noise rations:=90dB

Video
– Format: Support AVI (H.264, DIVX, XVID), rm, rmvb, MKV (H.264, DIVX, XVID). WMA, MOV, MP4 (H.264, MPEG,
DIVX, XVID). DAT (VCD format). VOB (DVD format). PMP, MPEG, MPG. FLV (H.263, H.264). ASF, TS, TP, 3GP,
MPG ect. =30 formats, Playing internet video directly (while downloading)
– Play: Up to 1920*1080 Pixels, 30Mb. Fluent play without light spot

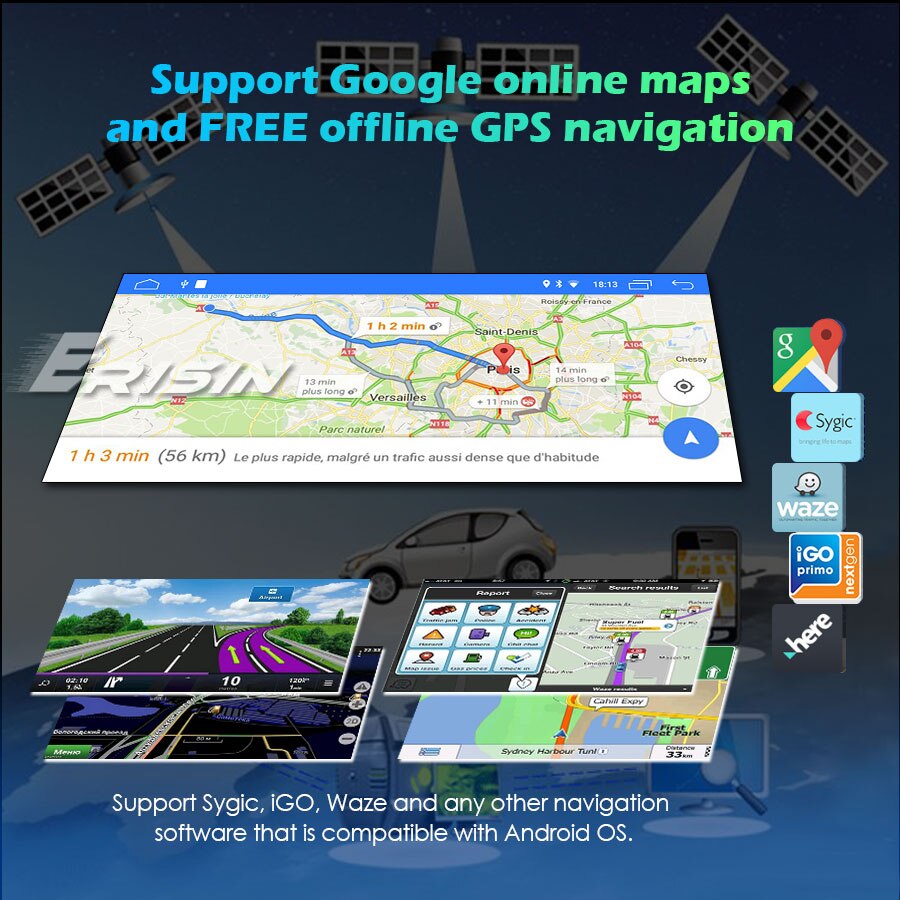

GPS

– Operation System: Android 10.0
– Support Maps: IGO, Sygic, Waze maps for Android 10.0
– Support offline navigation: Yes, ready to use.
– Dual Zone: Yes, navigating while music playing
– Online Navi: Yes, support online navigating such as google maps

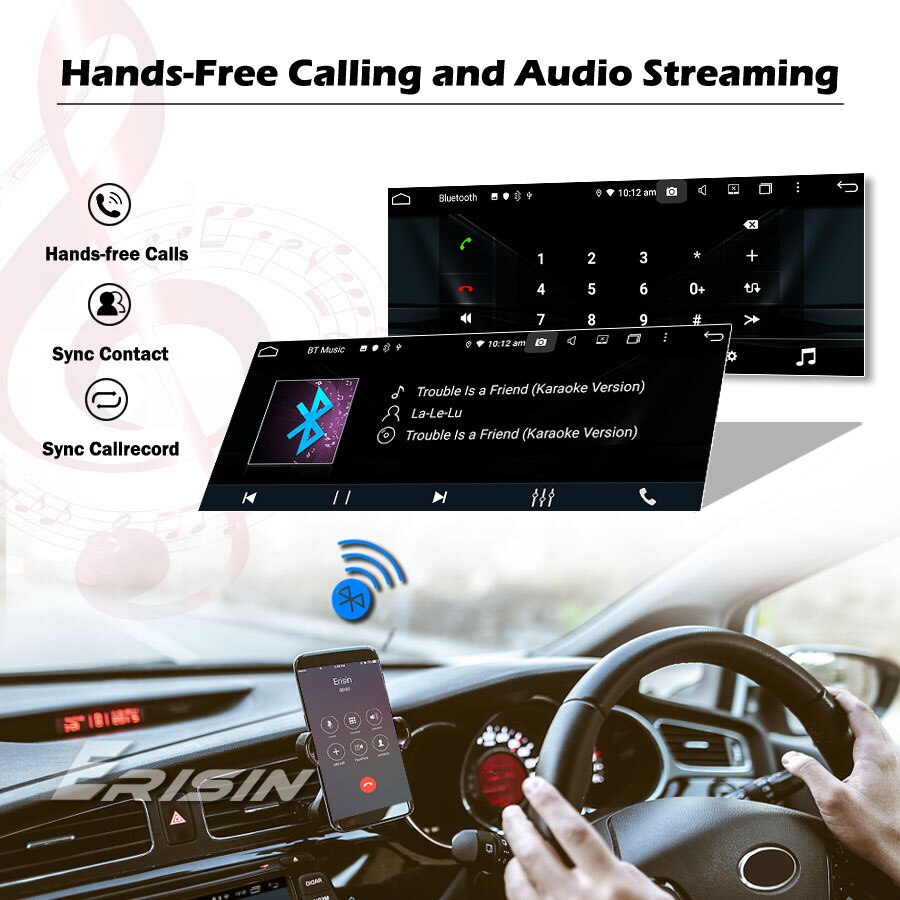

Bluetooth
– Hands Free: Yes
– A2DP (Bluetooth Stereo Music): Yes, can play stereo music through Bluetooth
– PB-Download: Yes, can download phonebook from mobile to this unit
– PB-Search: Yes, can use the first letter to search contact member in PB-Listings
– Calling Records: Yes, Dialed Call, Received Call, Missed Call
– Built-in Microphone: Yes, on the front panel
– External Microphone Jack: Yes, on the back

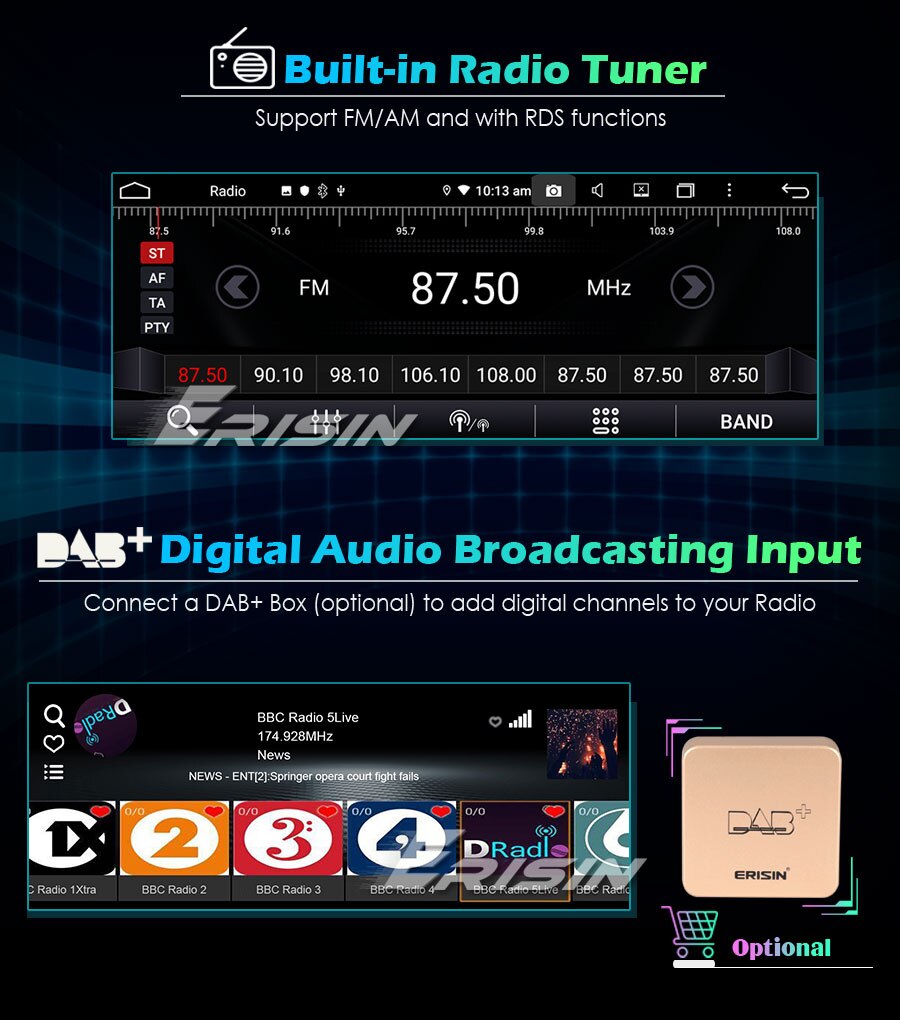

Radio
– Main Chips: TEF6686
– AM Frequency Range: 522-1620KHz
– AM Increment: 9KHz(EU)/10KHz(US)
– FM Tuning Range: 87.5-108MHz
– FM Increment: 0.05MHz(EU)/0.1MHz(US)
– FM Area: Europe/USA1/USA2/Japan/Russia
– RDS: On/Off
– Preset Stations: 30(FM 3*6, AM 2*6)

USB
– Position: 2 USB On the Back
– Function: Can be connected with U-Disc, 3G/4G Dongle, CarPlay Dongle, TPMS-Device, DVR-Camera, DAB+ Box, Smartphone etc.
– Capacity: 128GB
– Play MP5 Videos: Yes, can play RMVB Videos up to 1080P

TF
– Position: On the front panel
– Function: Can be used as Multimedia card or GPS card slot.
– Capacity: 128GB
– Play MP5 Videos: Yes, can play RMVB Videos up to 1080P

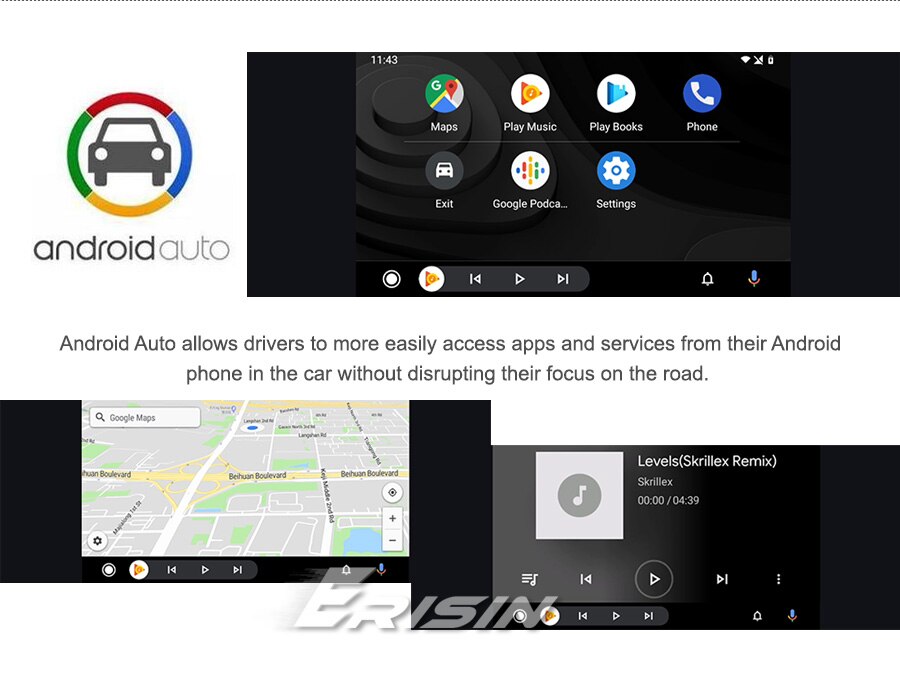

Android Auto
– Built-in Android Auto: Yes, just connect your smartphone to this unit with USB to use this function
– Connection Port: USB
– Support Device: Android Smartphone with Android 5.0 and above
– Support Wireless connecting: No
– Control the connected Android Phone on head unit: Yes

CarPlay
– Built-in CarPlay: Yes, just connect your smartphone to this unit with USB to use this function
– Connection Port: USB
– Support Device: iPhone iOS 7.1 and above
– Unit’s Screen Control Phone: No, but you can download CarPlay supported function APK to use and control

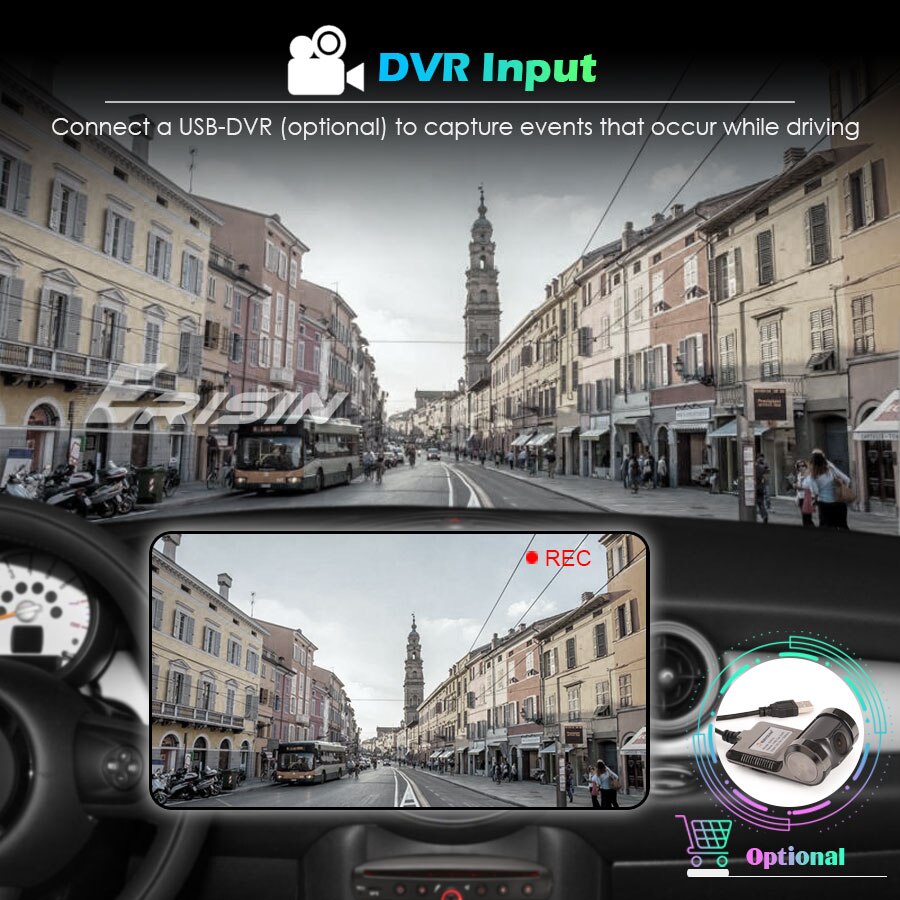

Car DVR
– Built-in Car Recorder App: Yes, just connect a USB Camera to use this function
– Support HD CCD Camera: Yes
– Play recorded Video directly: Yes
– Storing Position: Card/USB Storage can be changed

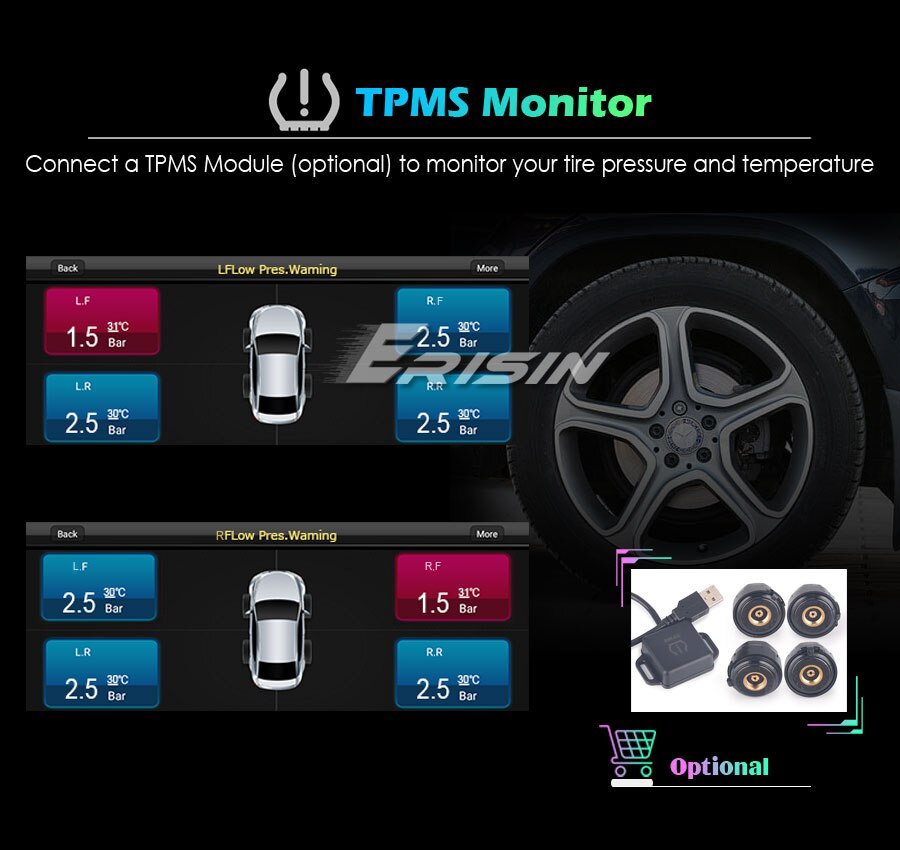

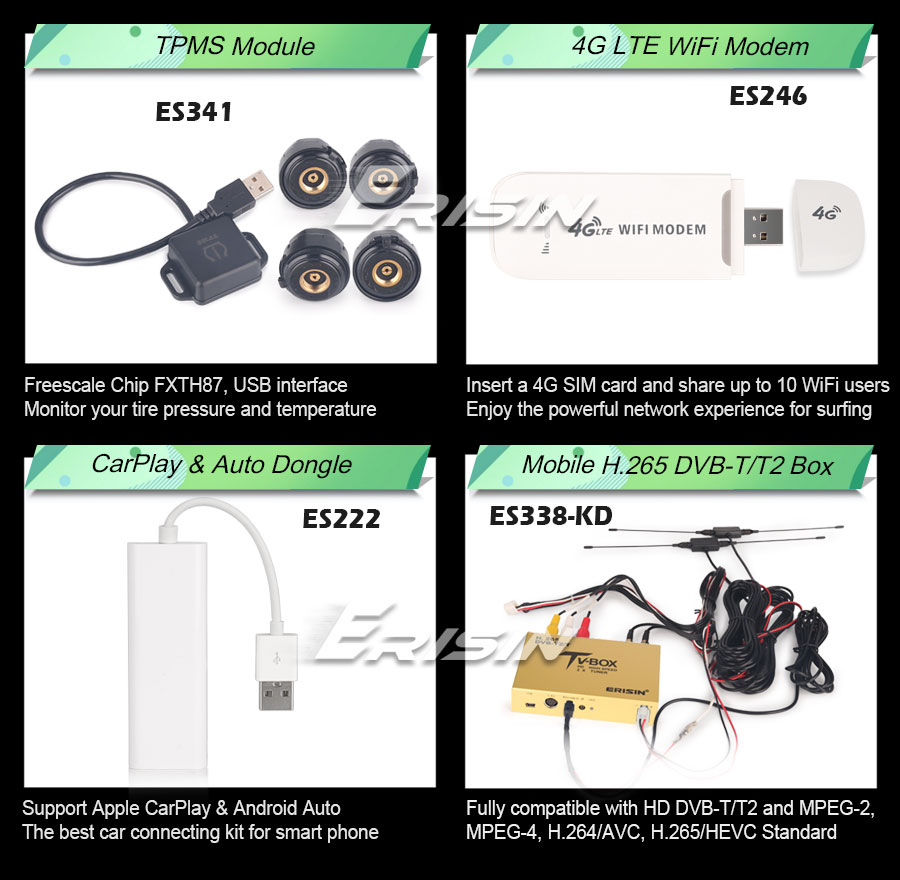

TPMS-IN
– Built-in TPMS App: Yes, just connect a TPMS Module to use this function
– Connection Port: USB
– Power Supply to TPMS Module directly: Yes
– Touch Control: Yes

DAB(+)-IN
– Built-in DAB Player App: Yes, just connect a DAB+ Box to use this function
– Connection Port: USB
– Power Supply to DAB+ Box directly: Yes
– Touch unit’s screen to control the connected DAB+ Box: Yes

DTV-IN
– Built-in DAB Player App: Yes
– Connection Port: Special
– Power Supply to connected DTV Box directly: Yes, you can connect our DTV Box to achieve this function
– Touch unit’s screen to control the connected DTV Box: Yes, you can connect our DTV Box to achieve this function

Additional
– Textbook: Could change font, font color, background color, bookmark, reading E-book while listening music
– Photo Viewer: Support JPS, BMP, PNG, GIF etc. format. play by revolve, Powerpoint Support 4096*4096 Pixels
– APK Installer: Support Android Package installer
– Support Torque Pro(OBD2 &Car): Yes, you can connect a Bluetooth OBD2 Scanner Tool to use this function
– Support steering wheel control, easier and safer to adjust volume, answer calls and switch the songs while driving.
– Support Android Multimedia Player, can play Music/Video/Photo from local Disc or USB/TF

Input
– AUX Video In: One
– Front-View Camera Video In: One
– Rear-View Camera Video In: One
– External Microphone In: One
– AUX Audio In: R/L
– TPMS Box In: One
– DTV Box In: One
– DAB+ Box In: One
– Car DVR In: One

Output

– Audio Out:FR/FL/RR/RL
– Surround Stereo Out: 4*45w
– Subwoofer Out: One

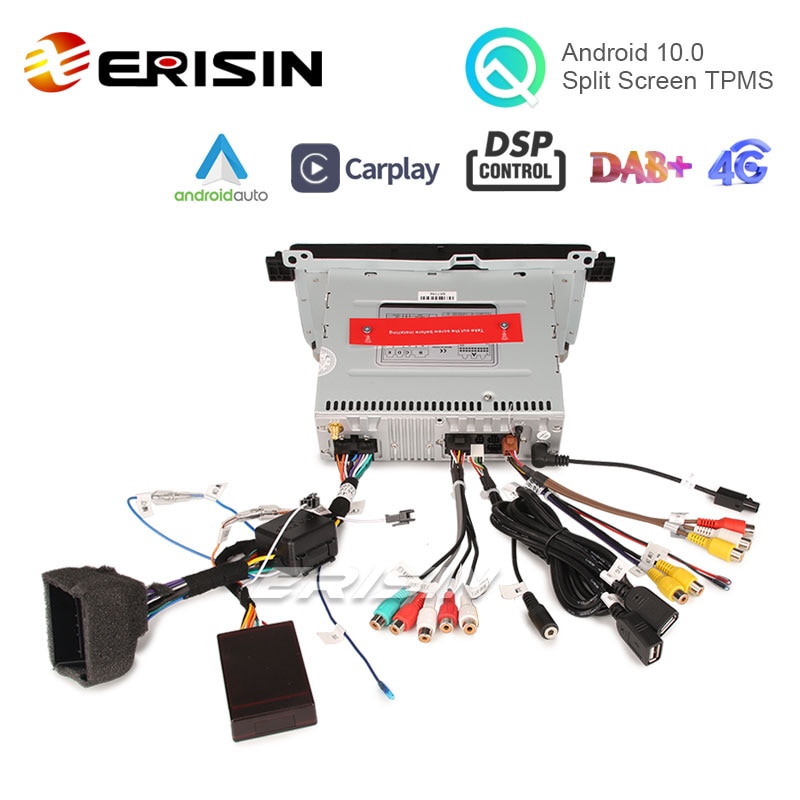

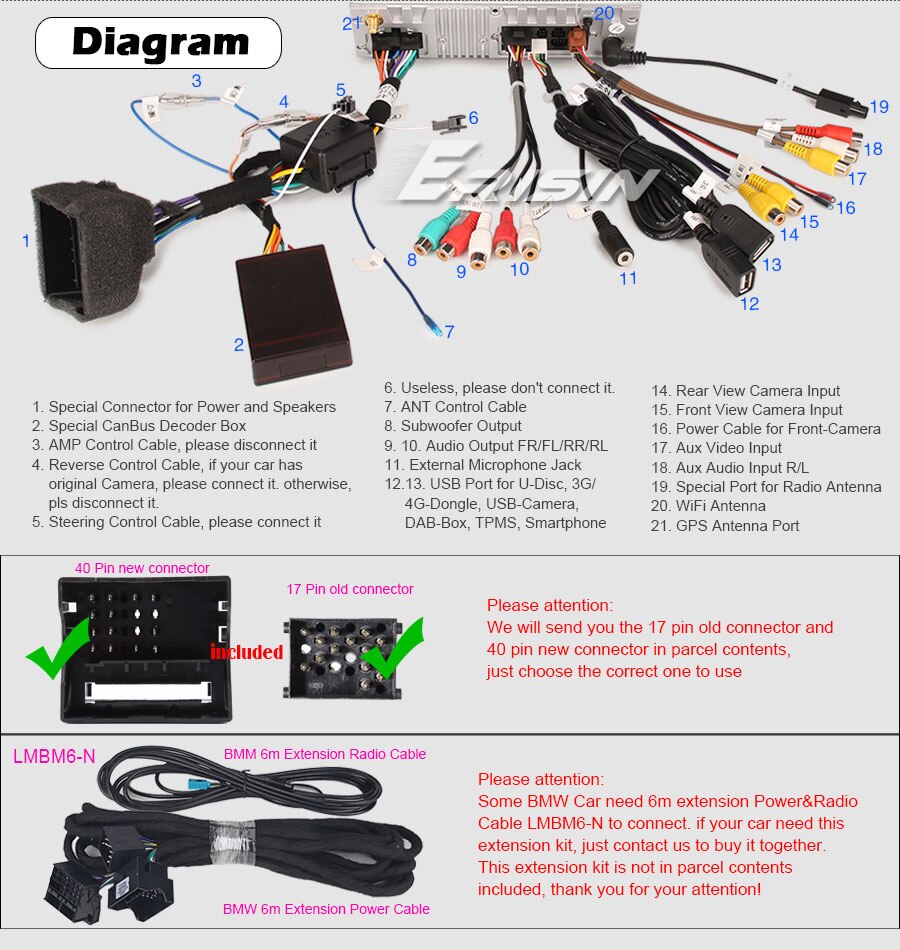

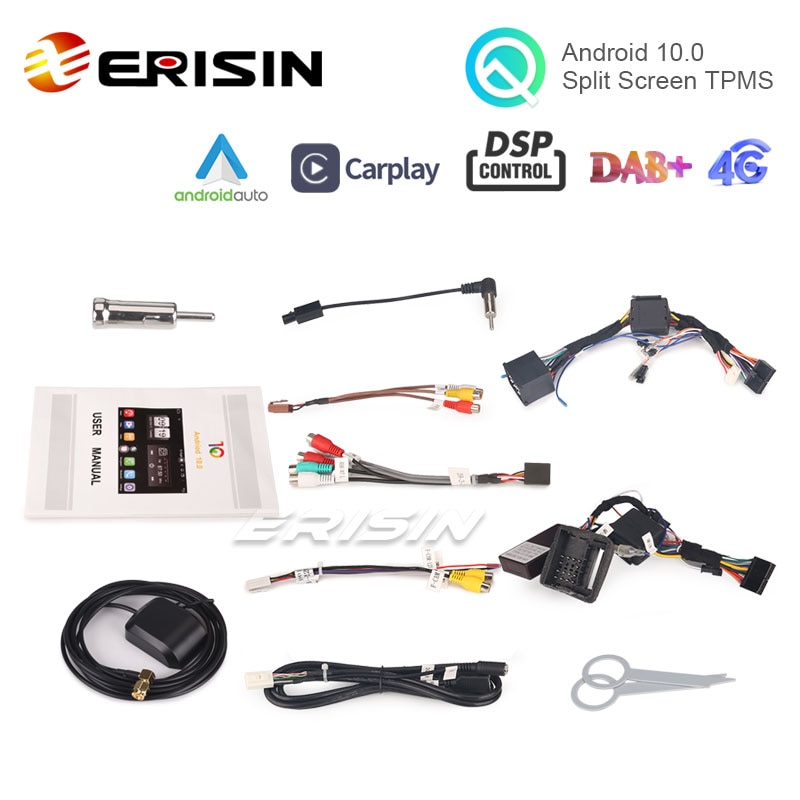

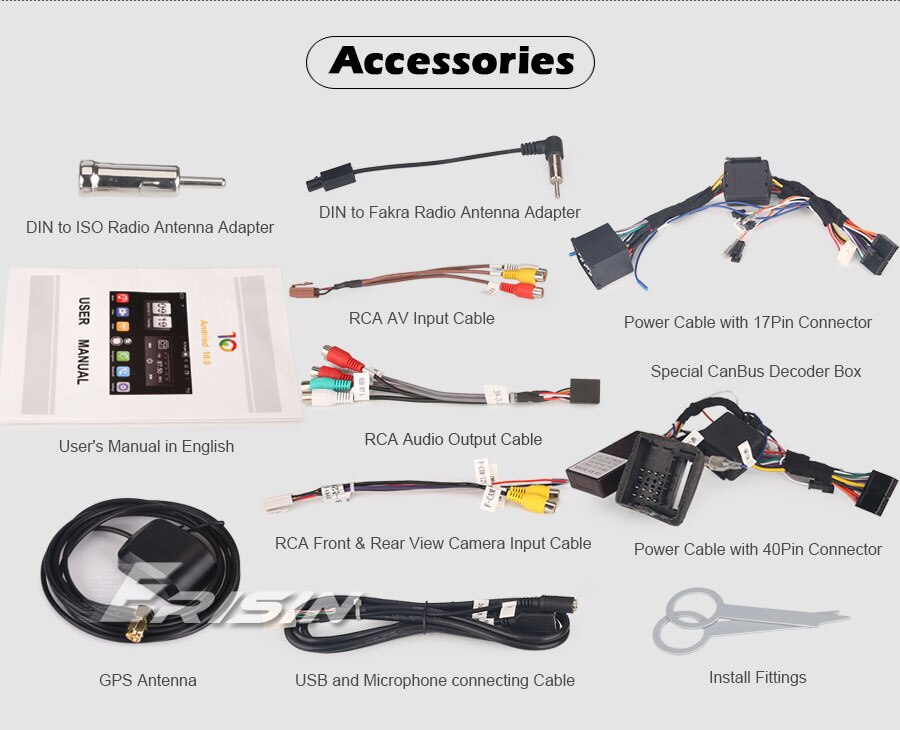

Accessories
– 1*User’s Manual in English
– 1*RCA AV Output Cable
– 1*RCA AV Input Cable
– 1*RCA Front & Rear View Camera Input Cable
– 1*Din to Fakra Radio Antenna Adapter Cable
– 1*Din to ISO Radio Antenna Adapter
– 1*Power Cable with 40Pin Connector
– 1*Power Cable with 17Pin Connector
– 1*Special Canbus Decoder Box
– 1*USB and Microphone connecting Cable
– 1*GPS Antenna
– 1*Install Fittings
